Spurs
Rope, Net and Weed Cutter |
|
|
| |
The
principle that enables the shaft mounted "SPURS" to cut so effectively
is the "screw action" created as the propeller turns, winding
lines, nets or weed directly into "SPURS" blades, instantly
cutting before allowing entanglement or damage to running gear.
The SPURS
cutter cuts twice with every rotation of the propeller shaft, preventing
entanglement buildup.
You won't even know it's working. |
 |
|
|
| Simple
in Concept. Sophisticated in Design. |
| ABS
Approved. |
 |

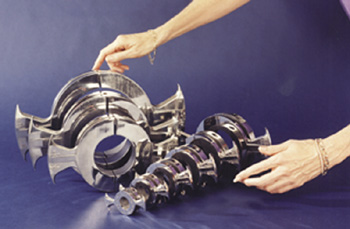

Shaft Mounted Cutters are
available to fit shaft sizes
3/4" to 6.1/2"
(20mm to 165mm)
With a range to suit most Skeg and Sterntube diameters. |
|
*
Eliminates hazardous dives to cut prop-fouling lines in freezing or high seas. |
| *
No more costly commercial "Down Time" for repairs. |
| *
Prevents the need to be "towed in". |
| *
No more shafts or struts torn loose that can sink your vessel. |
| *
Prevent burnt bearings, engine and transmission over load repairs. |
| *
Cuts line with each rotation - forward or reverse - with no loss of
speed or efficiency. |
| *
Avoid expensive haul-outs, dry-docking or diver's charges. |
| |
|
| SIZING
CHART - CUTTER DIMENSIONS - DECIMAL/METRIC |
| MODEL TYPE |
SHAFT DIAMETER |
CUTTER HUB DIAMETER |
CUTTER OVERALL LENGTH |
CUTTER WIDTH |
MINIMUM SPACE TO INSTALL |
| A |
3/4" to 1.1/4"
20, to 30mm |
1.97"
50mm |
4.02"
102mm |
.94"
24mm |
1.14"
29mm |
| B |
1" to 1.1/2"
25 to 40mm |
2.6"
66mm |
4.88"
124mm |
1.06"
27mm |
1.26"
32mm |
| C |
1.1/2" to 2"
40 to 50mm |
3.31"
84mm |
5.91"
150mm |
1.34"
34mm |
1.54"
39mm |
| D |
1.1/2" to 2.1/2"
40 to 63mm |
3.86"
98mm |
6.81"
173mm |
1.46"
37mm |
1.65"
42mm |
| E |
2" to 3"
50 to 75mm |
4.37"
111mm |
7.6"
197mm |
1.46"
37mm |
1.65"
42mm |
| F |
2" to 3.1/2"
50 to 90mm |
5.51"
140mm |
10.04"
255mm |
1.57"
40mm |
1.77"
45mm |
| F1 |
3" to 4.1/2"
75 to 115mm |
6.46"
164m |
10.83"
275mm |
1.73"
44mm |
1.93"
49mm |
| F2 |
3" to 5.1/2"
75 to 140mm |
7.87"
200mm |
13.5"
343mm |
1.69"
43mm |
1.89"
48mm |
| F3 |
4" to 7"
100 to 180mm |
9.33"
237mm |
15.63"
397mm |
1.8"
47mm |
2.05"
52mm |
| F4 |
5" to 10"
130 to 255mm |
13.2"
335mm |
19.5"
495mm |
2.6"
66mm |
2.8"
71mm |
| CUSTOM
SIZES AVAILABLE UPON REQUEST |
|
 |

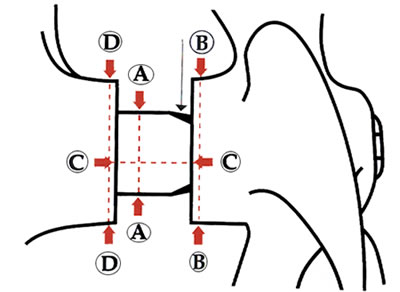

| MEASUREMENTS REQUIRED FOR ORDERING AND INSTALLATION |
| A |
Shaft Diameter |
Port = |
| |
|
Starboard = |
| B |
Propeller Hub Diameter |
Port = |
| |
|
Starboard = |
| C |
Space between Propeller and Sterntube of Skeg |
Port = |
| |
|
Starboard = |
| D |
Sterntube of Skeg Hub Diameter |
Port = |
| |
|
Starboard = |
| E |
Length of Exposed Taper forward of Prop Face |
Port = |
| |
|
Starboard = |
|
|
| |
|
|
| |
